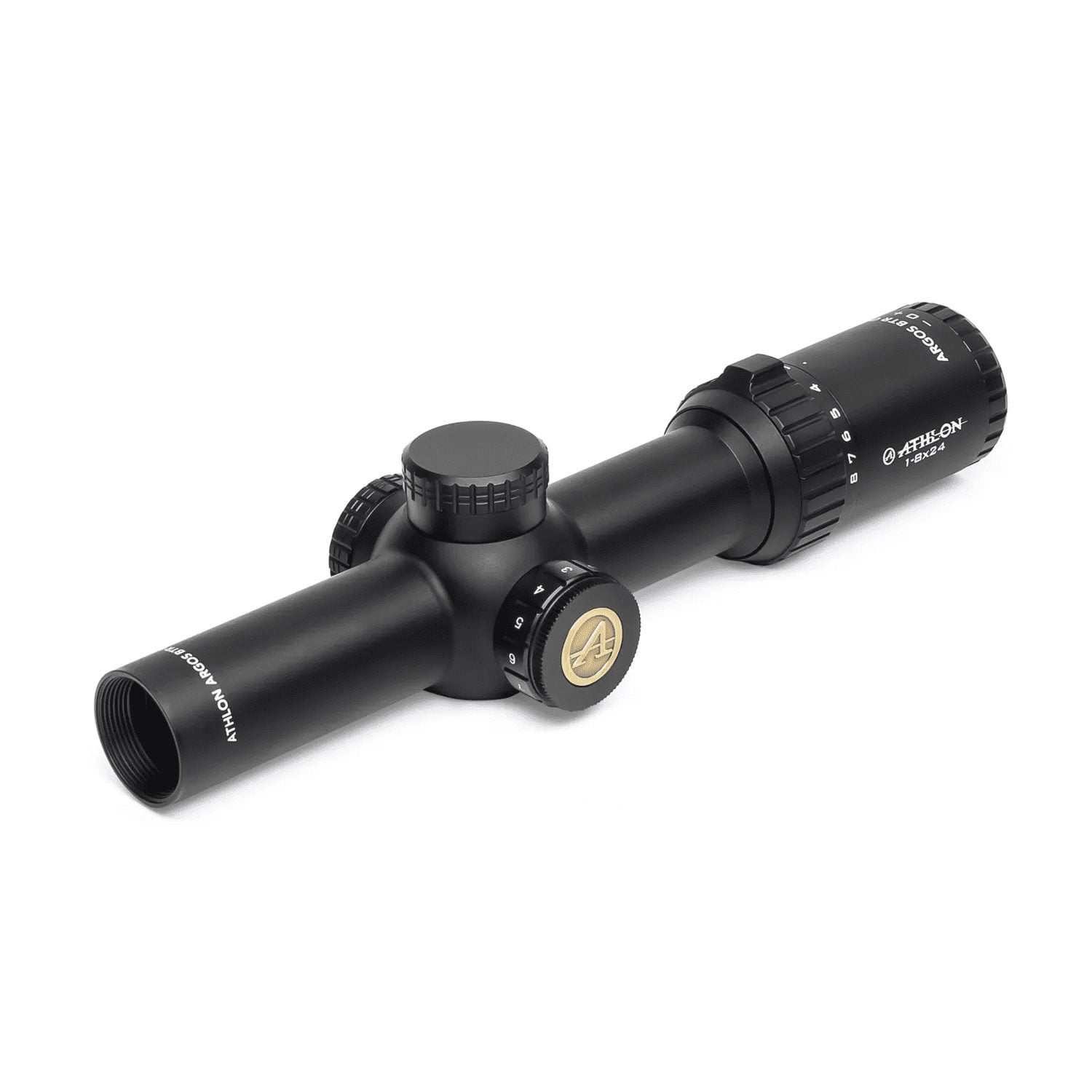

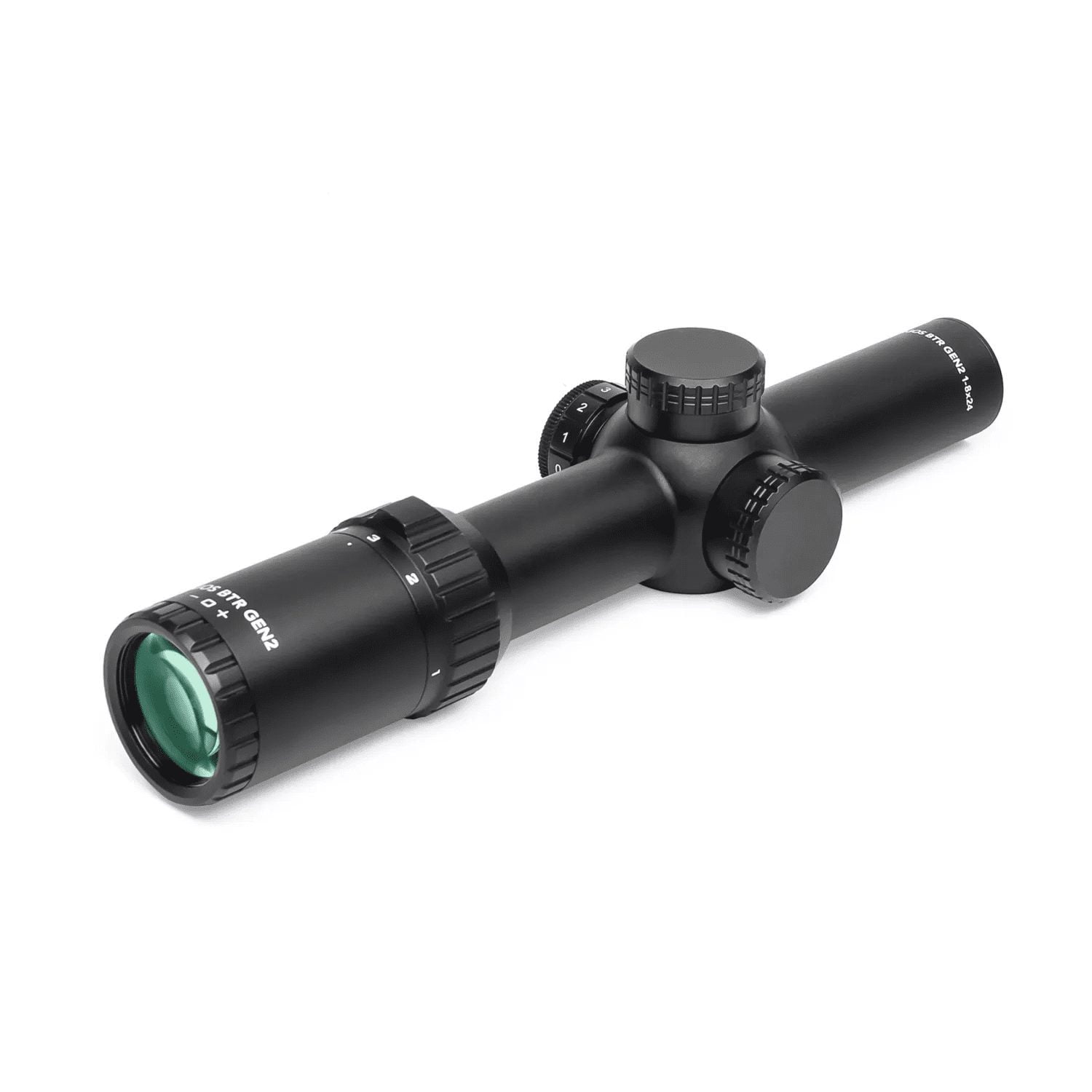

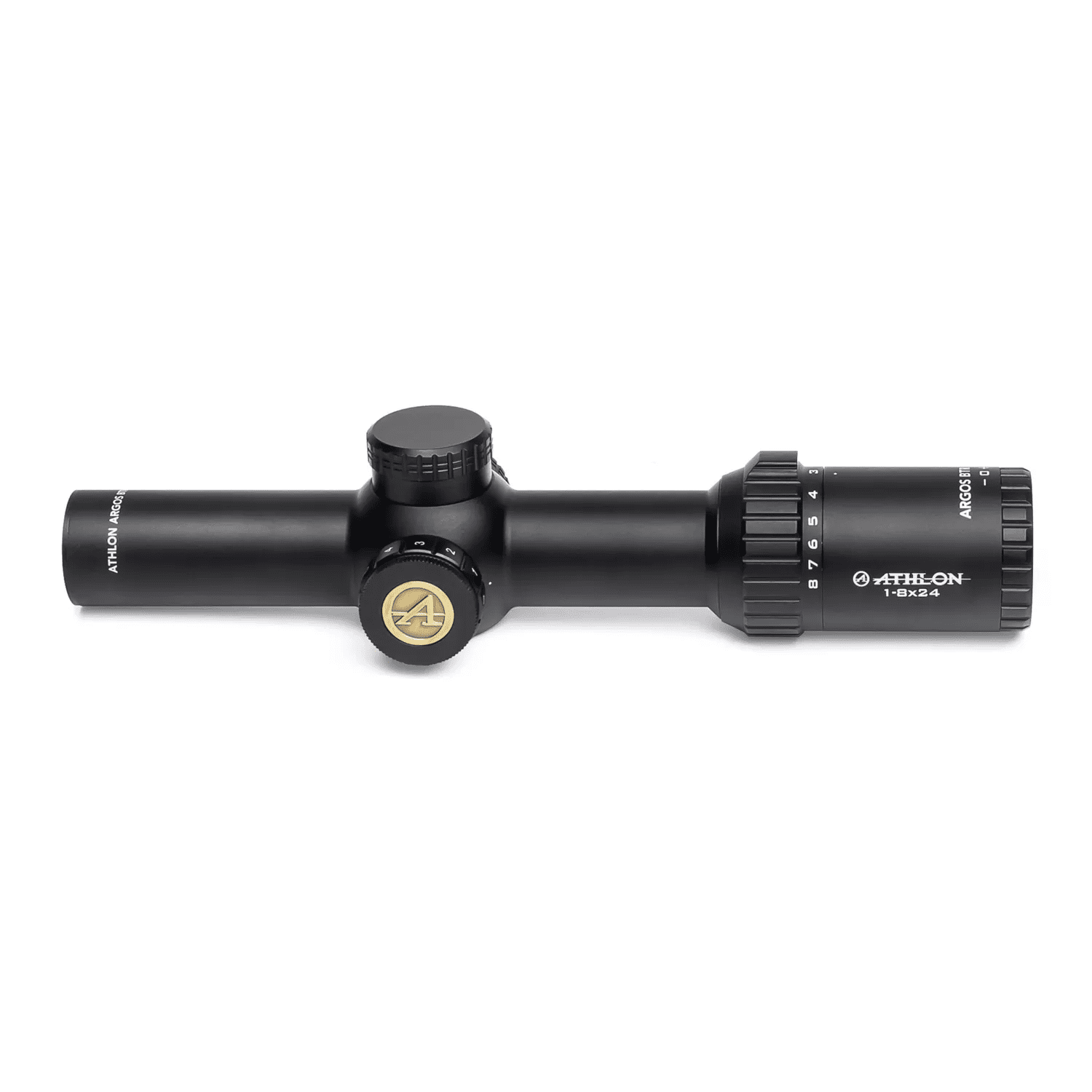

Multigunners, hunters, and those in the market for a self-defense optic; A 1-8x scope is very versatile tool. Whether you are expecting close engagement with wild hogs, or burning up ammo at the local range, a reliable close range scope with the ability to engage targets mid-range is something no one should be without. The glass-etched ATSR5 reticle provides quick target acquisition at close range and holdovers out to 600 yards using 68 and 69 grain BTHP 223 Rem/5.56mm NATO rounds. It is also suitable for many other bullet weights in these calibers. The illuminated reticle and Advanced Fully-Multi Coated optics aid in low light situations.
Reticle
Features
| Second Focal Plane Reticle | Second focal plane design keeps the reticle at the constant size regardless what magnification your scope is at and offers the same visual reference at all time. |
| Illuminated Reticle | The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment. |
| Etched Glass Reticle | Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil |
| Advanced Fully Multicoated | Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses |
| 6061 T6 Aluminum | The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it. |
| Heat Treated One Piece Tube Construction | Heat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product |
| Waterproof | Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater |
| Fog proof | Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside |
| Shockproof | Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times. |
| Argon Purged | Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability. |
Specifications
| Magnification | 1-8 |
| Objective Lens Diameter | 24 mm |
| Reticle | ATSR5 SFP IR MOA, Glass Etched |
| Surface Finish | Matte |
| Lens Coating | Wide Band Fully Multicoated |
| Extra Coating | Xtra Protective Coating |
| Tube Material | Aircraft Grade Aluminium |
| Tube Diameter | 30 mm |
| Exit Pupil | 9-3 mm |
| Eye Relief | 3.4 inches |
| Field of View @100 yards | 110-14.5 feet |
| Click Value | 0.5 MOA |
| Adjustment range per rotation | 44MOA |
| Total Elevation Adjustment | 100MOA |
| Total Windage Adjustment | 100MOA |
| Turret Style | Capped |
| Parallax Adjustment | Fixed |
| Purging Material | Argon |
| Length | 9.8 inches |
| Weight | 16.1 ounces |
| User Instruction Manual | Download |
| Reticle Manual | Download |
